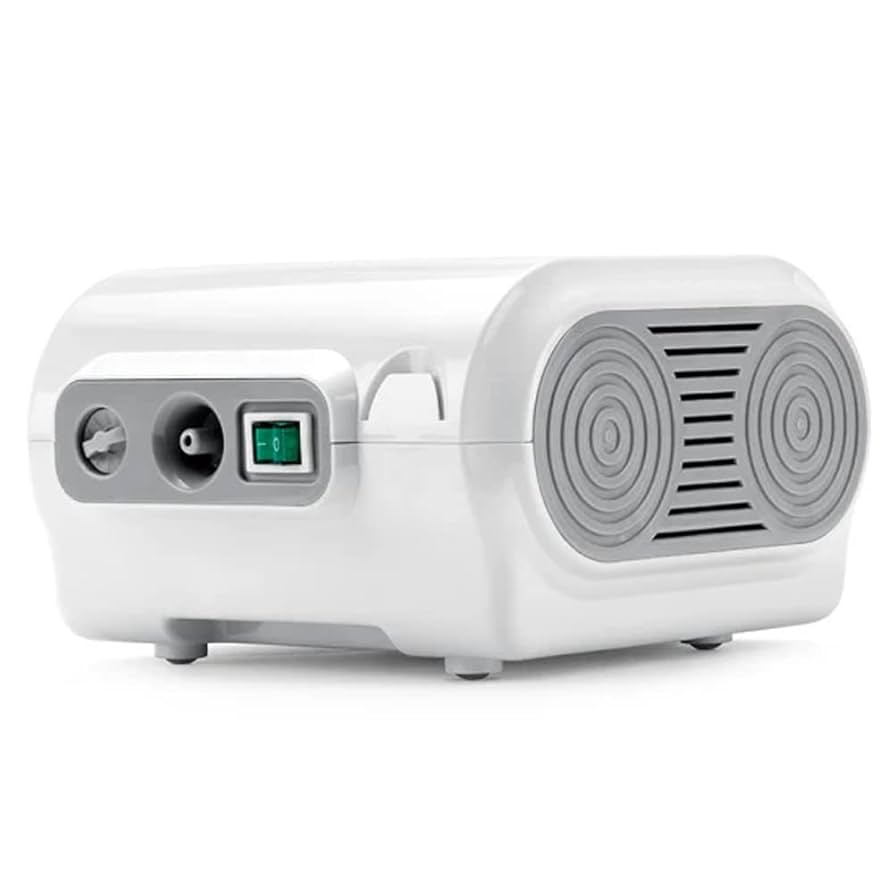

The Portable Medical Nebulizer Machine is a compact respiratory therapy device designed to convert prescribed liquid medication into a fine aerosol mist for inhalation. It provides a convenient and efficient method of delivering nebulized medication for patients requiring respiratory therapy.

With a medication capacity of 8 mL, a liter flow rate of ≥6.7 L/min, and an average nebulization rate of ≥0.25 mL/min, the machine is designed to support consistent medication aerosolization. It produces particles within a 0.5–10 µm range, while the operating pressure range is 9.5–19 PSI (65–130 kPa).

The unit operates on AC 220V/50Hz with a power consumption of 168VA. Measuring 205 × 150 × 100 mm and weighing approximately 1.3 kg, its compact construction makes it convenient for homecare, clinics, hospitals, and other healthcare environments.

The nebulizer comes with essential accessories, including an air tube, adult mask, child’s mask, mouthpiece, nebulizer, and five filters, providing a ready-to-use solution for prescribed nebulizer therapy.

Key Features

• Compact and portable respiratory therapy design
• AC 220V/50Hz power supply
• 168VA power consumption
• 8 mL medication capacity
• ≥0.25 mL/min average nebulization rate
• ≥6.7 L/min liter flow rate
• Particle size range of 0.5–10 µm
• Compressor pressure range of 22–58 PSI (150–400 kPa)
• Operating pressure range of 9.5–19 PSI (65–130 kPa)
• Sound level of ≤65 dB(A) at 1 metre

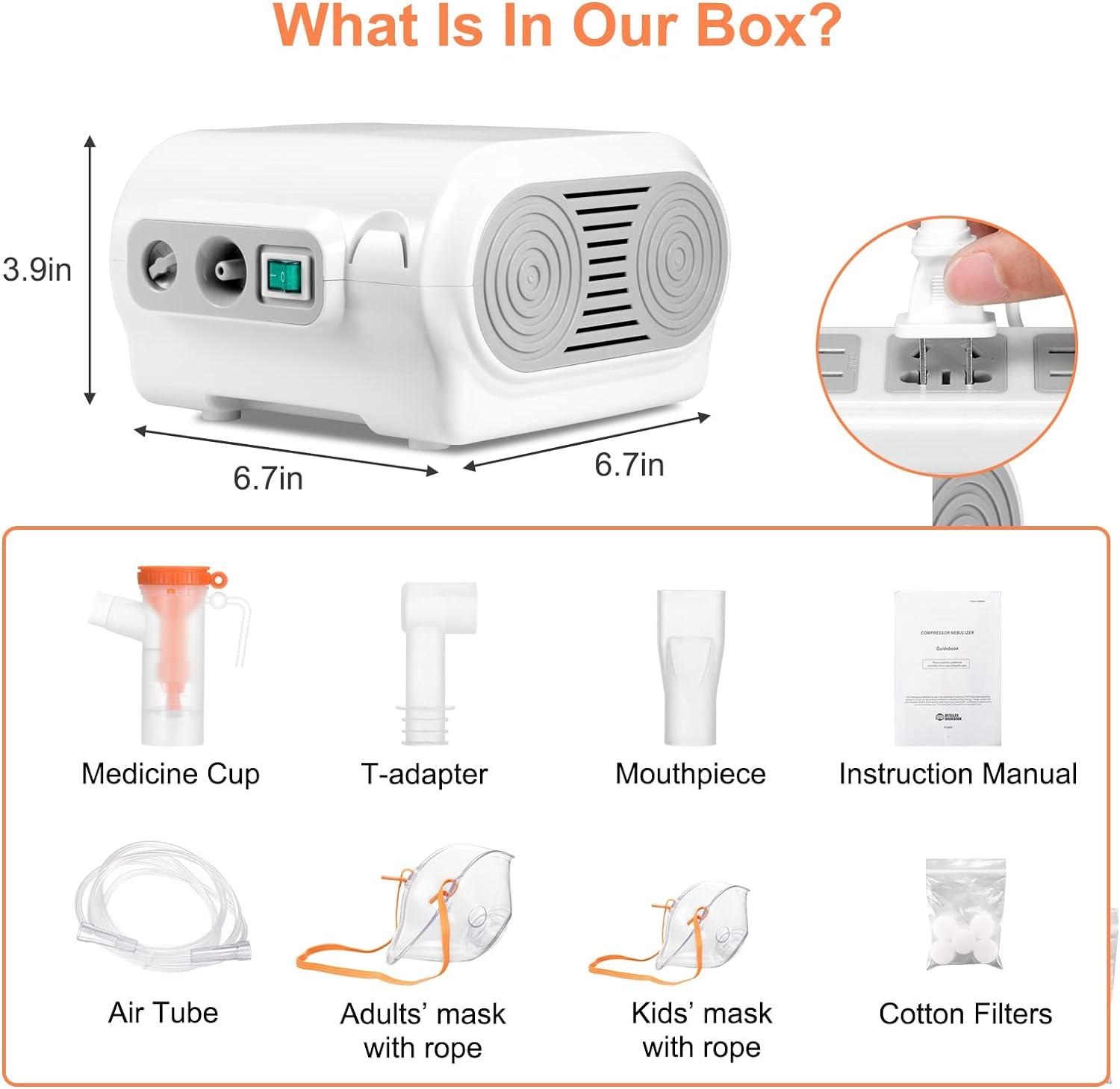

• Compact 205 × 150 × 100 mm design
• Lightweight 1.3 kg construction
• Includes adult and child masks
• Includes mouthpiece, air tube, nebulizer and 5 filters
• Designed for a 5-year use life under appropriate operating conditions

Applications

The Portable Medical Nebulizer Machine can be used for prescribed nebulized respiratory therapy associated with:

• Asthma
• COPD
• Bronchitis
• Wheezing
• Bronchospasm
• Other respiratory conditions requiring nebulized medication
• Home respiratory care
• Hospital respiratory therapy
• Clinic and healthcare facility use

Important: Use only medications prescribed or recommended by a qualified healthcare professional. The nebulizer is a medication-delivery device and does not independently diagnose or treat respiratory conditions.

Specifications

Why Choose This Portable Medical Nebulizer?

Efficient Nebulization

With an average nebulization rate of ≥0.25 mL/min when tested with 0.9% saline water, the machine is designed to provide consistent aerosol production during nebulizer therapy.

Fine Aerosol Particle Production

The device produces particles within a 0.5–10 µm range, supporting the conversion of compatible liquid medication into an inhalable aerosol.

Strong Compressor Performance

The compressor pressure range of 22–58 PSI (150–400 kPa) and operating pressure range of 9.5–19 PSI (65–130 kPa) provide the pressure required for compressor-driven nebulization.

Practical and Portable

At approximately 1.3 kg and measuring 205 × 150 × 100 mm, the unit is compact enough for convenient storage and transportation while remaining suitable for regular respiratory therapy.

Complete Accessory Package

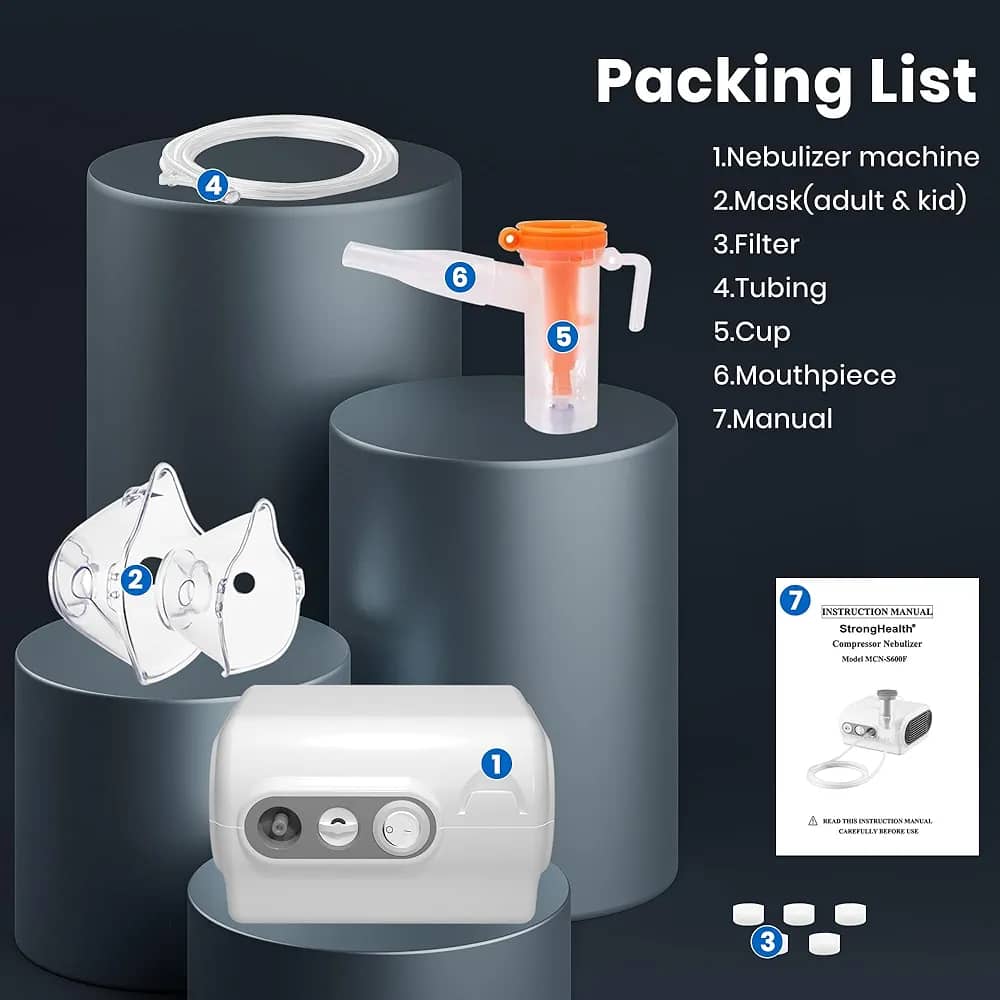

The standard package includes a nebulizer, air tube, adult mask, child’s mask, mouthpiece, and five filters, providing essential components for convenient use.

Suitable for Home and Clinical Use

The machine is suitable for prescribed nebulizer therapy in homes, clinics, hospitals, and other healthcare environments, with appropriate accessories available for adult and pediatric patients.

Environmental Specifications

The device is designed to operate within a temperature range of 5°C to 40°C (41°F to 104°F) and relative humidity of 15–80% RH. For storage, it supports a temperature range of -25°C to 60°C (-13°F to 140°F).
